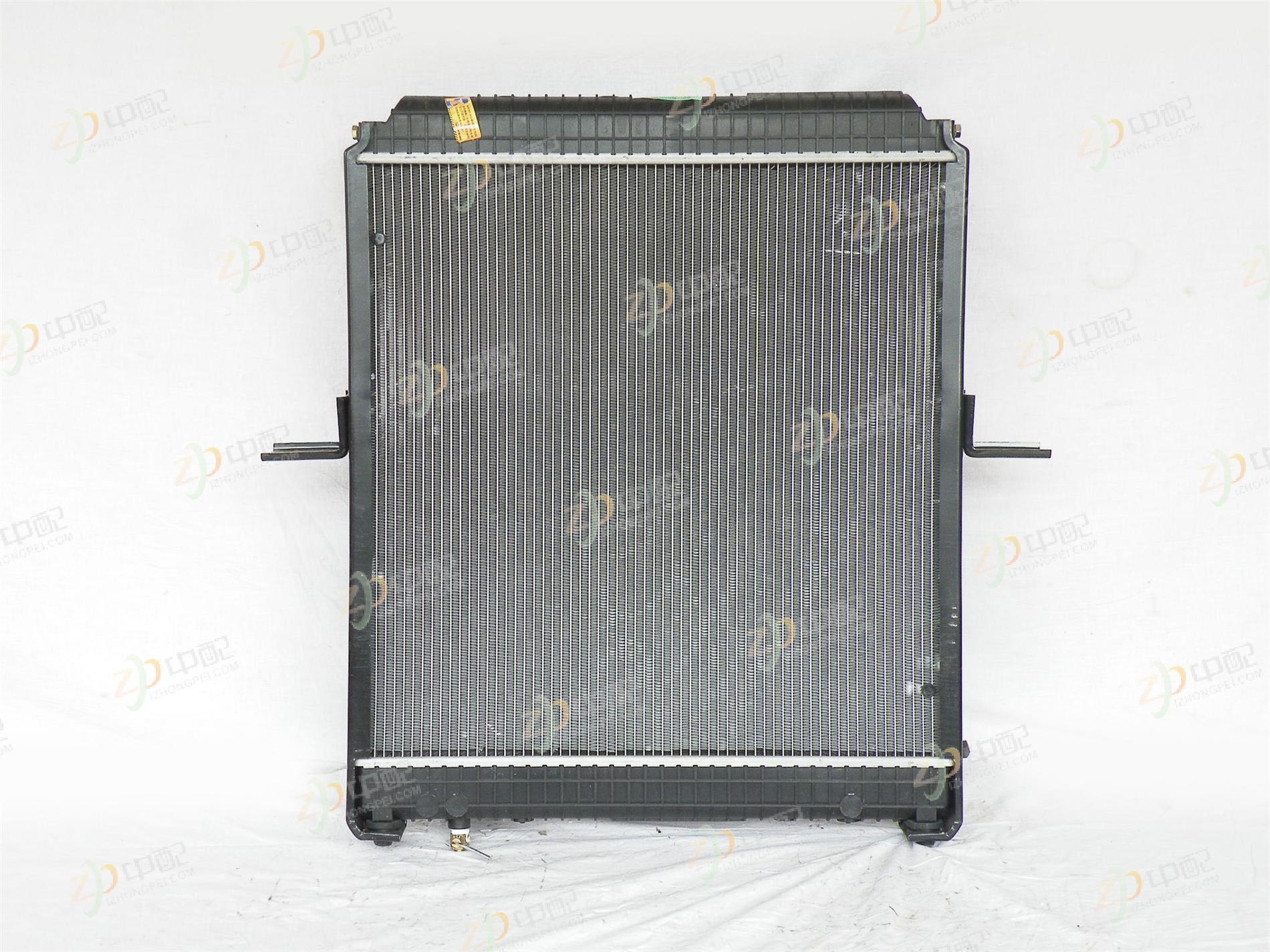

| Part Name |
Radiator |
| Special Param |
1 row*aluminum*1301DS3 |
| Part Property |
b620*h760*左d45*右d58mm |
| Part Property Description |
Width*height*water inlet*water outlet |
| Vehicle |
Chenglong Prince LZ1061 |
| Vehicle Type Code |
|
| Vehicle Model |
Chenglong |
| Brand |
雷迪特 |
| Part No. |
1301DS31-001 |
| Common No. |
100484 |
| Description |
Height from the bracket to the bottom: 400mm</br>The widest distance of the bracket: 795mm</br>The middle distance of the bracket: 720mm</br>Water release switch position: Bottom right*</br>Water tank thickness: 85mm</br>13DN02- 11056 rear return hose</br>13DN02-11057 front return hose</br>13DS31-03011 radiator water inlet Hose</br>13DS31-03012 Radiator water outlet hose</br>13DS31-09011 Wind shield</br>13DS31-11041 Thermostat degassing steel Pipe</br>13DS31-11042 Radiator degassing steel pipe</br>13DS31-11045 Return steel pipe assembly</br>13DS31-11052 Degassing hose |
| Remark |
Enter d45 from the top left* and exit d58 from the bottom right* point A |
Description
One-Stop Solution for f-diesel OEM Radiator 1301DS31-001 For Chenglong Prince LZ1061 For 雷迪特
,Radiator 1 row*aluminum*1301DS3
b620*h760*左d45*右d58mm Width*height*water inlet*water outlet Chenglong Prince LZ1061
Chenglong 雷迪特
1301DS31-001,FAW Engine Parts,FAW Gearbox Parts,FAW chassis Parts,FAW Electrics Parts,
FAW OEM Parts,FAW Truck Parts ,SINOTRUK Engine Parts,SINOTRUK Gearbox Parts,SINOTRUK chassis Parts,
SINOTRUK Electrics Parts,SINOTRUK OEM Parts,SINOTRUK Truck Parts,DONGFENG Engine Parts,DONGFENG Gearbox Parts,
DONGFENG chassis Parts,DONGFENG Electrics Parts,DONGFENG OEM Parts,DONGFENG Truck Parts,SHACMAN Engine Parts,
SHACMAN Gearbox Parts,SHACMAN chassis Parts,SHACMAN Electrics Parts,SHACMAN OEM Parts,SHACMAN Truck Parts,JAC Engine Parts,
JAC Gearbox Parts,JAC chassis Parts,JAC Electrics Parts,JAC OEM Parts,JAC Truck Parts,FOTON Engine Parts,FOTON Gearbox Parts,
FOTON chassis Parts,FOTON Electrics Parts,FOTON OEM Parts,FOTON Truck Parts,DAYUN Engine Parts,DAYUN Gearbox Parts,DAYUN chassis Parts,
DAYUN Electrics Parts,DAYUN OEM Parts,DAYUN Truck Parts,HONGYAN Engine Parts,HONGYAN Gearbox Parts,HONGYAN chassis Parts,HONGYAN Electrics Parts,
HONGYAN OEM Parts,HONGYAN Truck Parts for China commercial Vehicle OEM Parts,
We specialize in providing Chinese original commercial vehicle spare parts services.
