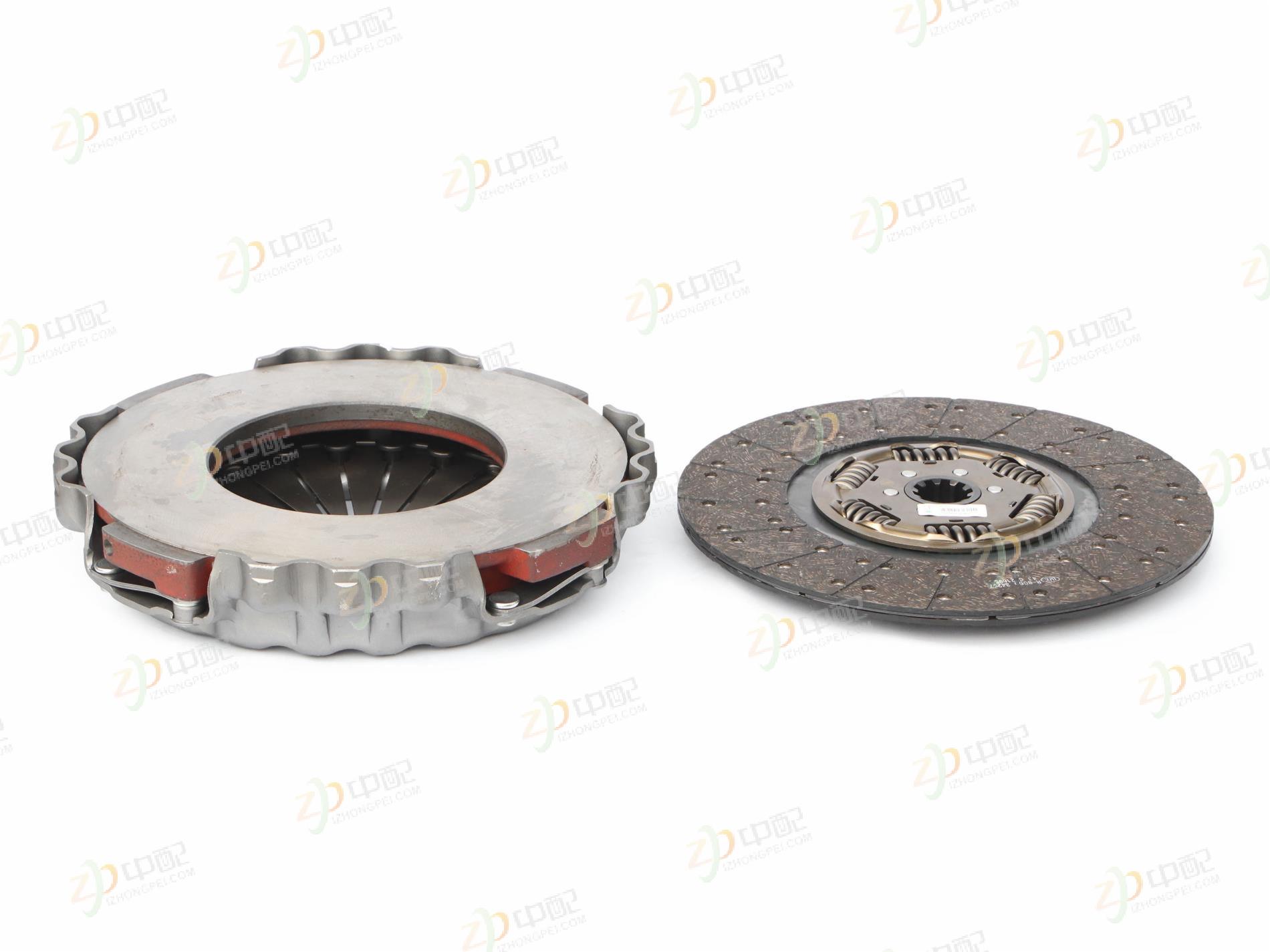

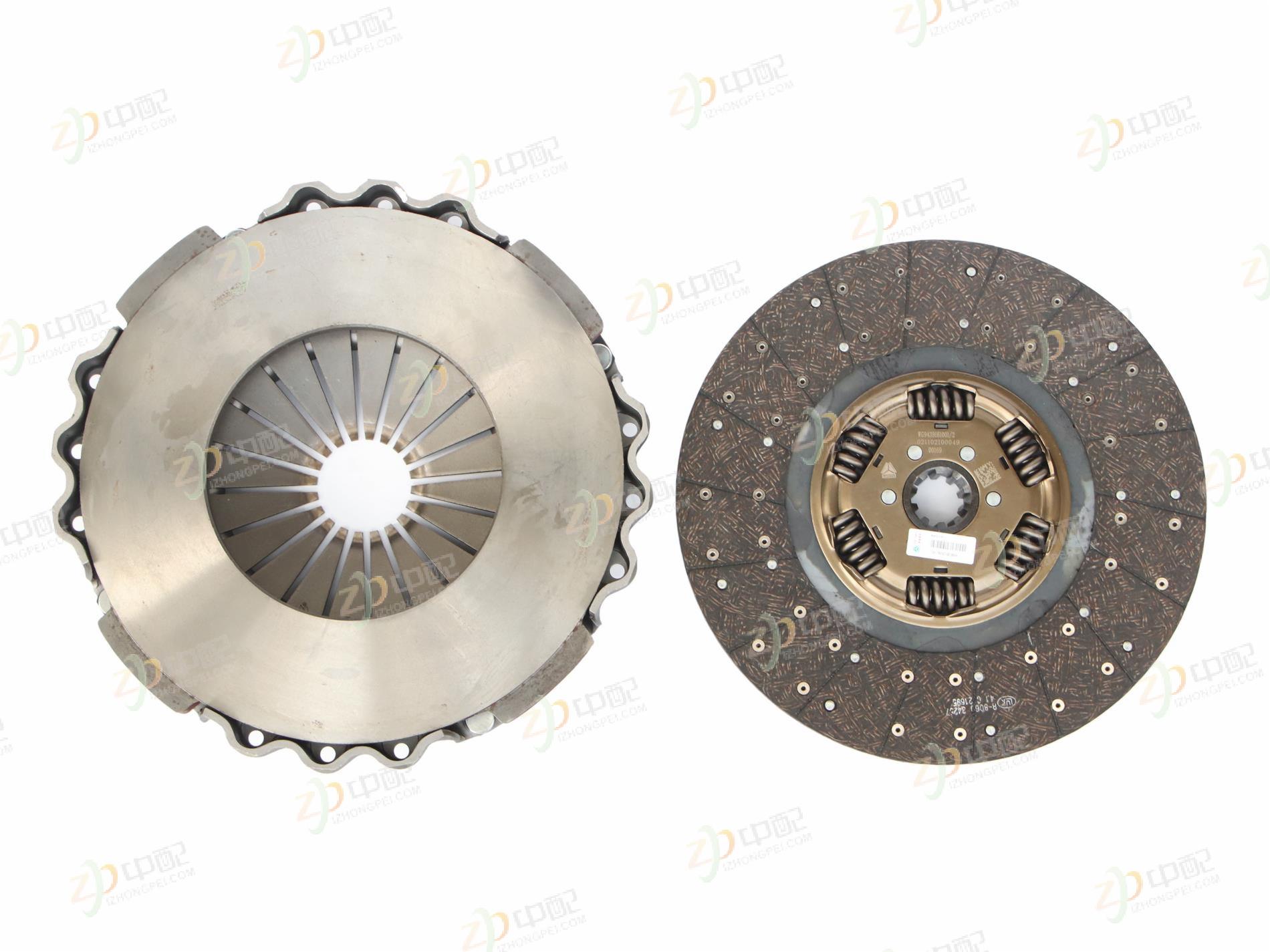

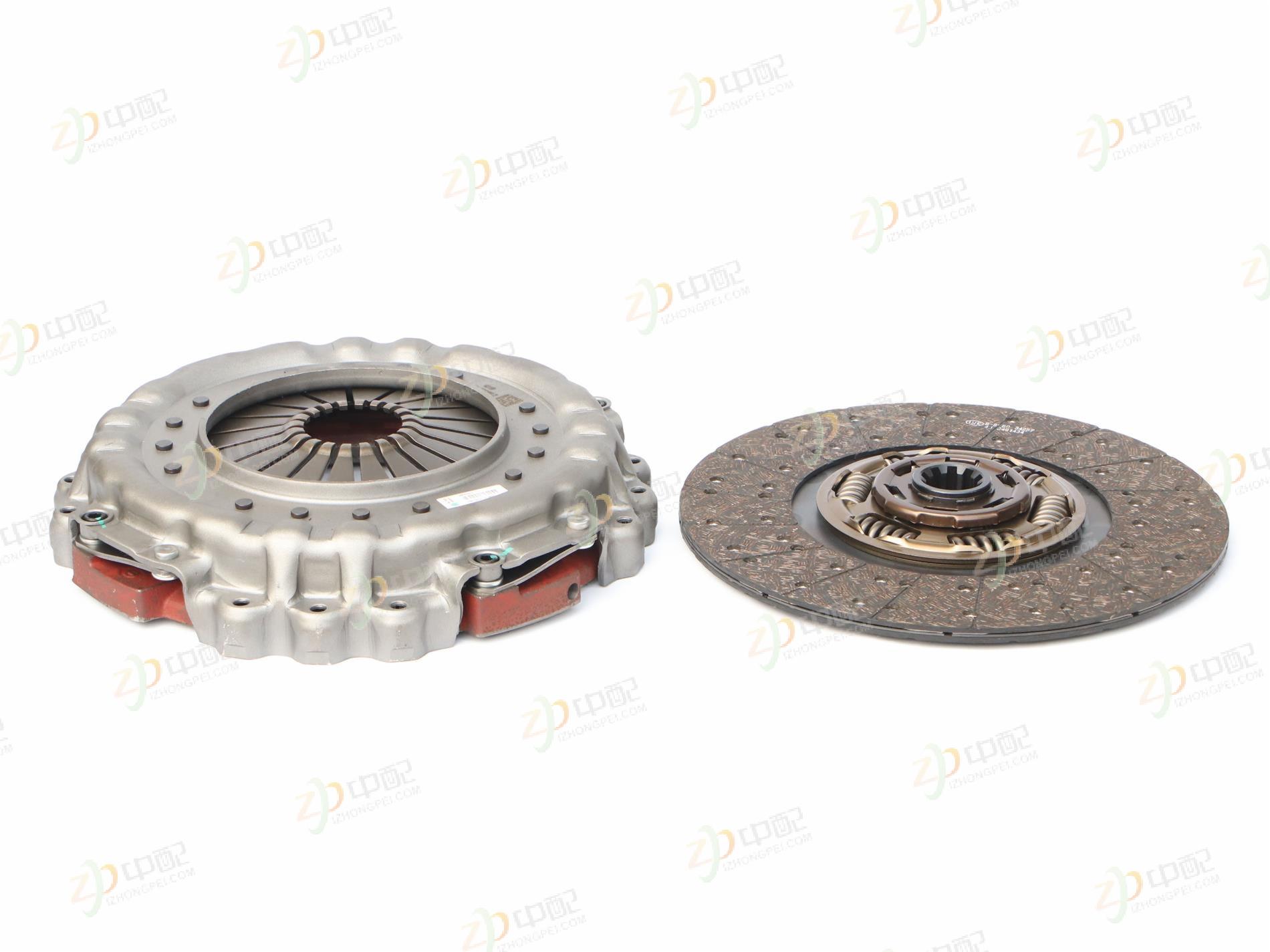

Name : Clutch Assy
Part No. : WG9439161001
Category : Clutch Assy
Available
Ships in 1 business day
Price each: contact us
| Part Name | Clutch Assy |
| Special Param | Diaphragm type*Inner diameter 71 |
| Part Property | DS395 |
| Part Property Description | model |
| Vehicle | SINOTRUK Xinhuanghe |
| Vehicle Type Code | |
| Vehicle Model | Yellow River |
| Brand | SINOTRUK |
| Part No. | WG9439161001 |
| Common No. | |
| Description | Key length 60* friction plate inner diameter d194/230* plate width 82* plate thickness 11.5* key convex h4* outer diameter d57 |

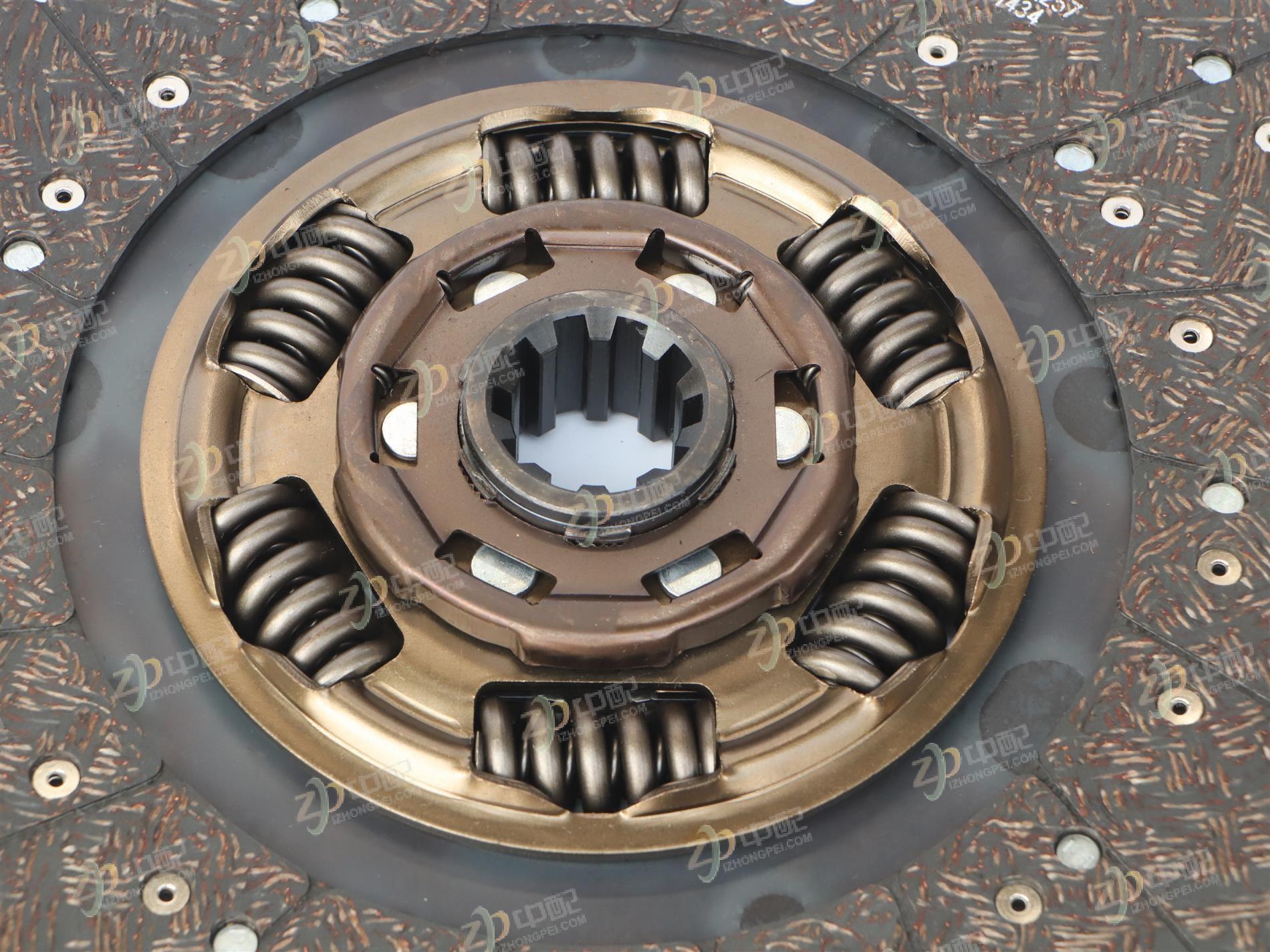

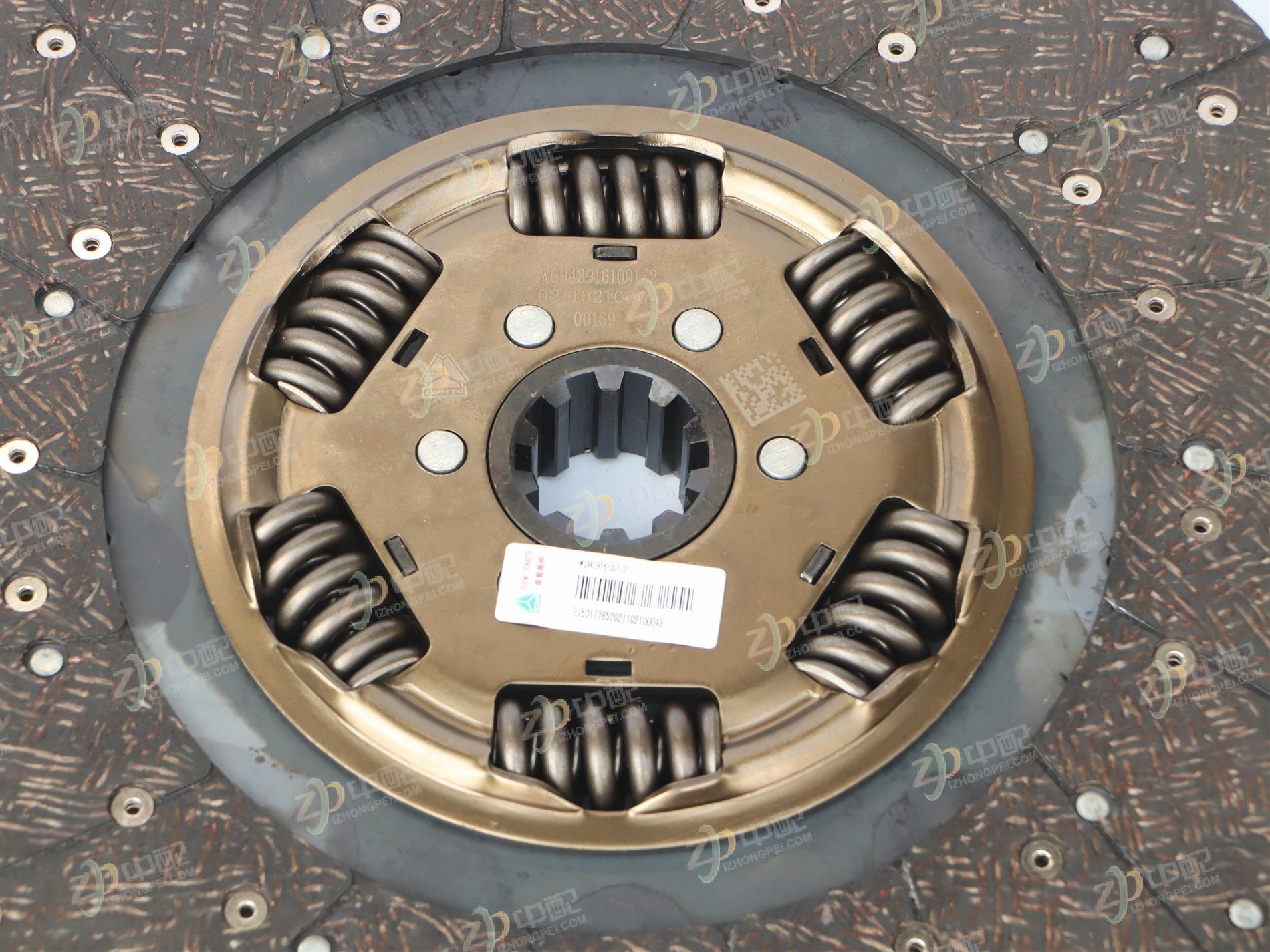

| Remark | Pressure plate: 12 holes d10*zL410mm*20 pieces*aperture d71*middle hole d215*4 sets of 3 holes-zL53/205*installation position h38*claw h86*cover h83*width b90*concave h6*middle hole 228 hole universal 215*not vice versa*Clutch plate: 6 double springs*pull type*DS395*10c*d44.5mm*Point A |
| # | picture | horsepower | emission standard | engine Code | series name | brand name | factory name | model |
|---|---|---|---|---|---|---|---|---|
| 1 |
|
210马力 | National V | MC05.21-50 | HOWO G5X | SINOTRUK | SINOTRUK HOWO Light Truck | Refrigerated Truck |
| 2 |
|
220马力 | National V | D45TCIE1 | HOWO G5X | SINOTRUK | SINOTRUK HOWO Light Truck | Cargo Truck |
| 3 |
|
180马力 | National V | MC05.18-50 | HOWO G5X | SINOTRUK | SINOTRUK HOWO Light Truck | Cargo Truck |
| 4 |
|
220马力 | National V | WP4.6NQ220E50 | HOWO G5X | SINOTRUK | SINOTRUK HOWO Light Truck | Cargo Truck |
| 5 |
|
220马力 | National IV | YC6J220-46 | SINOTRUK New Huanghe | SINOTRUK | SINOTRUK | Tractor Unit |
| 6 |
|
195马力 | National V | MC05H.20-50 | HOWO N5G | SINOTRUK | SINOTRUK HOWO | Cargo Truck |
| 7 |
|
225马力 | National V | MC05H.23-50 | HOWO N5G | SINOTRUK | SINOTRUK HOWO | Cargo Truck |
| 8 |
|
240马力 | National V | MC05H.25-50 | HOWO N5G | SINOTRUK | SINOTRUK HOWO | Cargo Truck |
| 9 |
|
240马力 | National V | MC07.24-50 | HOWO N5G | SINOTRUK | SINOTRUK HOWO | Cargo Truck |
| 10 |
|
285马力 | National V | MC07H.29-50 | HOWO N5G | SINOTRUK | SINOTRUK HOWO | Cargo Truck |
| 11 |
|
270马力 | National V | WP7.270E51 | HOWO N5G | SINOTRUK | SINOTRUK HOWO | Cargo Truck |
| 12 |
|
295马力 | National V | WP7.300E51 | HOWO N5G | SINOTRUK | SINOTRUK HOWO | Cargo Truck |
