New energy tractor power battery structure and terminal definition
This knowledge base introduces or describes the This article introduces the power battery pack specifications for electric vehicles, including 105.6V 340Ah 35.9kWh single battery configuration (1P33S), structure, and low-voltage communication interface definitions for 24V power and CAN communication signals.
Table of contents
1、Power Battery
2、Structure and Contents
1. Power Battery

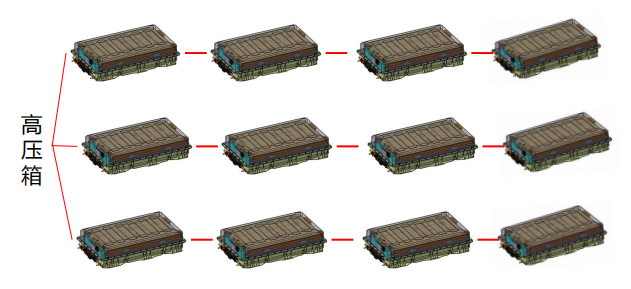

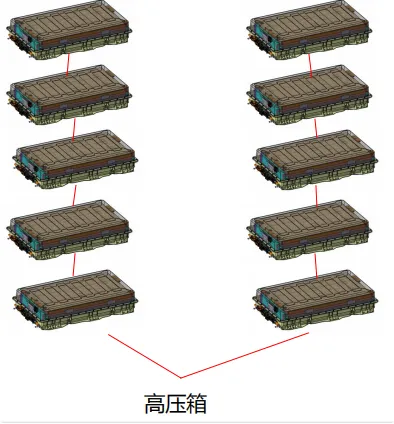

Power Battery Pack
Single Battery: 105.6V 340Ah 35.9KWh
Single Battery: 1P33S, 1 parallel, 33 series
Single Battery: 105.6V 340Ah 35.9KWh
Single Battery: 1P33S, 1 parallel, 33 series

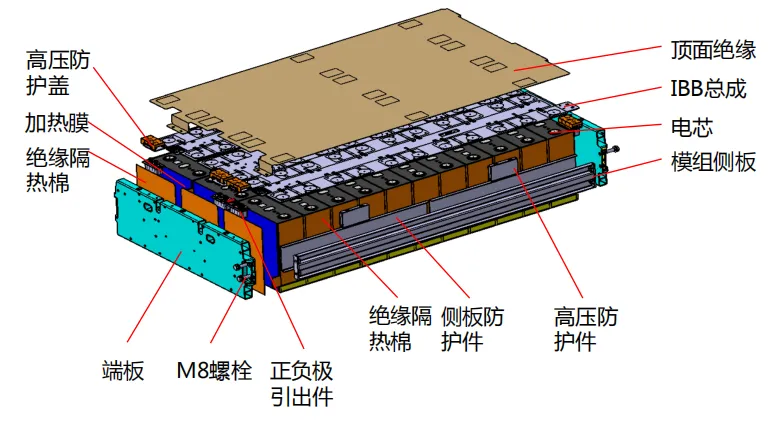

2. Structure and Contents
Low-Voltage Communication Definition
Terminal 1 = 24V+
Terminal 2 = 24V-
Terminal 3 = INCAN-H
Terminal 4 = INCAN-L
Terminal 5 = INCAN-S
High-Voltage Box Low-Voltage Communication Interface
